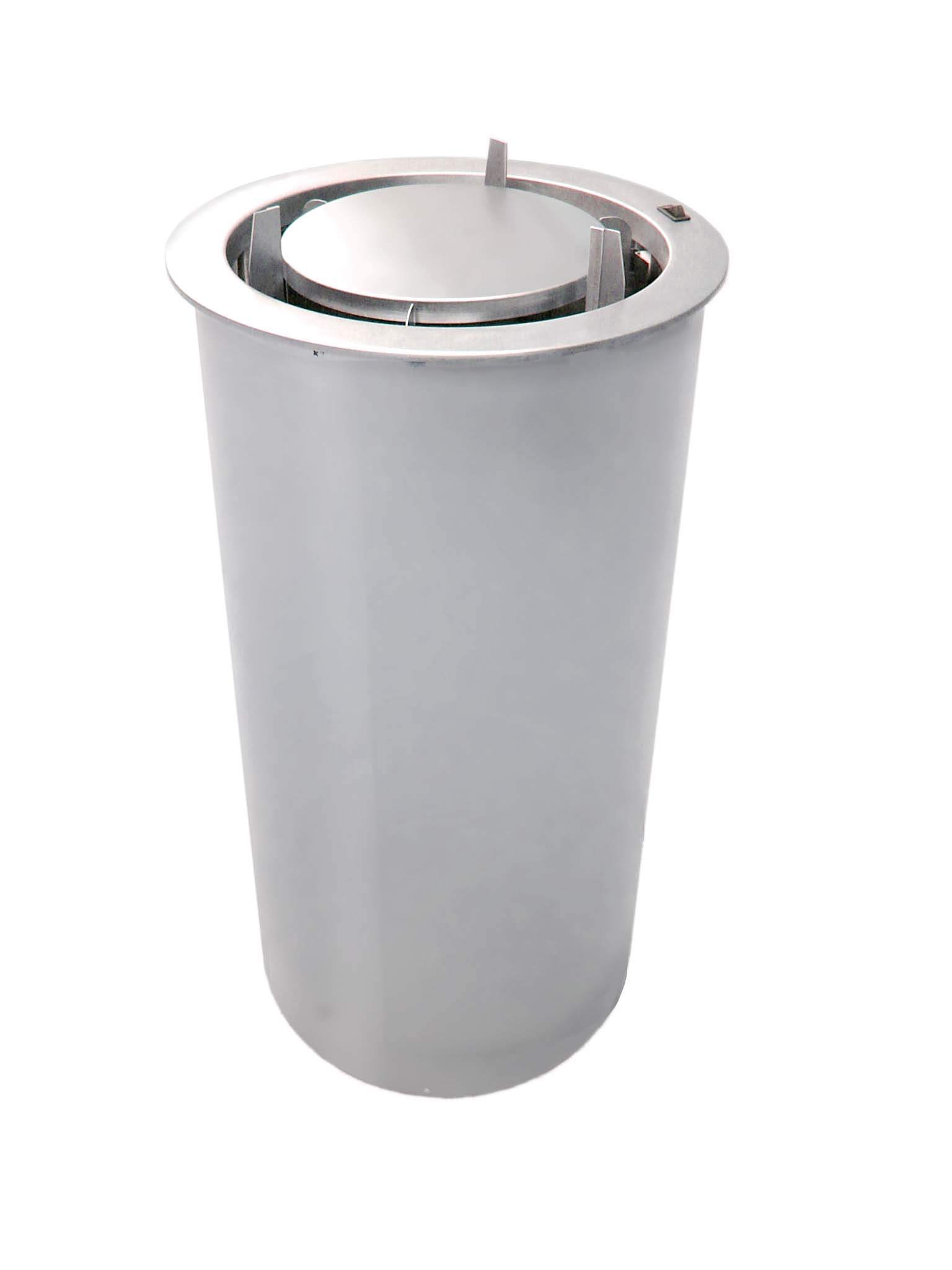

PLATE LOWERATORS PLATE WARMER ANVIL – DROP IN

FEATURES

• Temperature control via thermostat (PLK0001 & PLK0002) • Pre set thermostat on PWK1001 • Double skin Stainless Steel construction reduces heat loss and improves the strength of the unit • Adjustable plate guides • Adjustable spring tension • Easily moved to required position • Countersunk unit is designed for counter top installation

SPECIFICATIONS – PWK1001

• VOLTAGE: 230V
• POWER: 0.4kW
• DIMENSIONS: 405 circumference x 728mm
• WEIGHT: 25kg
• PLATE GUIDES: 3 (per compartment)
• PLATE CAPACITY: Approx 40 (varies with plate thickness)
• PLATE SIZE: 200 – 300mm
• MAX PLATE SIZE: 300mm Diameter
• CUT DIAMETER: 385mm
• REQ CABINET DEPTH: 730mm

ORDER CODES:

• PWK1001 C PLATE WARMER ANVIL – DROP IN
